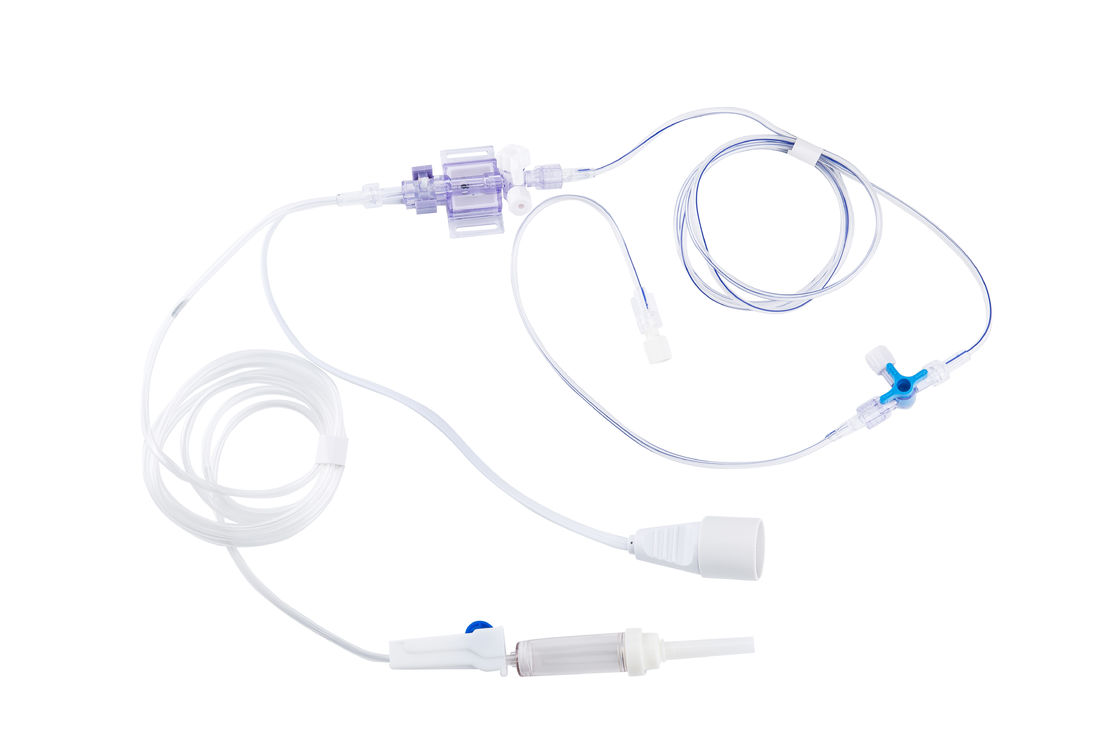

Medical Edwards Disposable IBP Transducer Compatible PX260 PX600

OEM Part Number Cross References:

Disposable Pressure Transducer:

• Atmospheric Pressure: 70~106 kPa
• Humidity: 10~90% (non-condensing)
• Working Pressure Range: -50 to +300 mmHg
• Operating Temperature Range: 15°C to 40°C
• Sensitivity: 5.0 μV/V/mmHg ±3%
• Non-linearity and Hysteresis Maximum Reading: ±1.5%
• Input Impedance: 1200 ohm to 3200 ohm
• Output Impedance: 300 ohm ±5%
• Zero Deviation: within ±20 mmHg
• Zero Temperature Drift: ≤±0.3 mmHg/°C
• Zero Pressure Output Drift: within 8 hours after 20 seconds of warm-up, within 2 mmHg
• Sensitivity Temperature Drift: ≤±0.1%/°C
• Frequency Response: Standard pressure set (48"/12") is 40 Hz; separate sensor > 200 Hz
• Anti-Defibrillation: Defibrillation depends on the final connected device
• Leakage Current: Leakage current depends on the final connected device
• Over Pressure Load: -400 to +4000 mmHg
• Impact Resistance: 3 drops from a distance of 1 meter
• Photo Sensitivity: When exposed to a tungsten light of 3400 °K and 3000 foot candles, it is less than 1 mmHg at the rated voltage.
• Contact Time with Human Body: ≤168h
• Storage and Transportation Environment Requirements: -20°C to +60°C, <90% (non-condensing), no corrosive gas, well-ventilated room, and avoid high temperature and severe cold.
• Flow Rate in the System: The flow rate in this system is at 6.00VDC and 25°C, unless otherwise specified.
• Washing Device: 2-5 ml/h
• Product Validity: 3 years
•

Quality:
At Med Accessories, we prioritize quality. We use only the best quality (original) components to ensure that our product range meets the highest standards. All products are strictly selected and tested by our QC department.

Warranty:
For warranty information, please refer to the details provided above. In the normal case of product use, any quality problems caused by raw materials or the production process within the warranty period will be repaired free of charge. After the warranty period, service center maintenance can be provided, but repair or modifications may incur charges if the product failure is due to improper installation, improper use, accidents, natural disasters, or other factors beyond our responsibility.

Payment:
We accept payment via TT (bank transfer), Western Union, and PayPal.

Shipping:
We offer multiple shipping options, including DHL, UPS, TNT, FedEx, and EMS.
